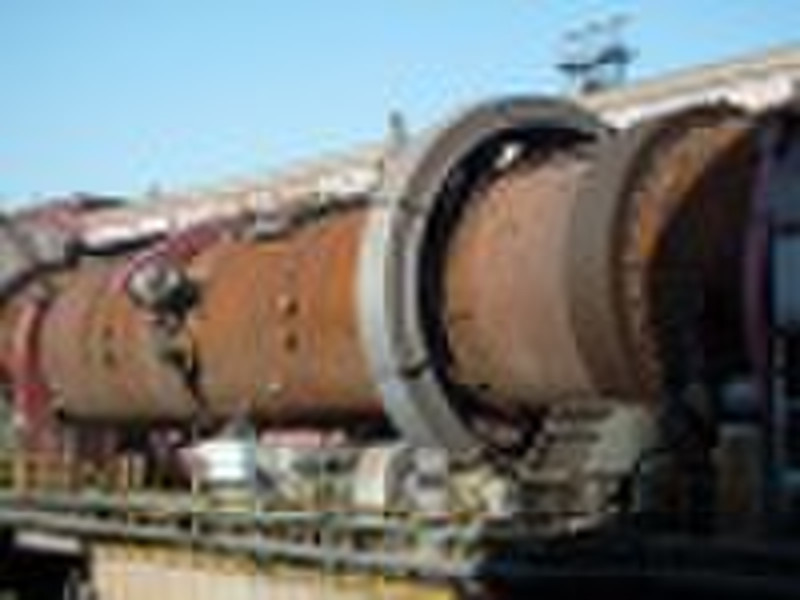

Rotary Kiln

1 Our company’s advantage:Focus on DRI Rotary Kiln (1) Quality assurance strictly following German standard (2) Very attractive price (3) Very short delivery time (4) Long service life (5) Quality control by JRP professional QC team 2 Our Services:We provide rotary kiln critical components, such as girth gear, tyre, pinion, pinion shaft, support rollers, thrust rollers, and etc., according to German DIN’ standard. 3 The Process of DRI Rotary Kiln:EPC projects for complete DRI rotary kiln production lines (100TD to 500TD) and spare parts supplies. The process of rotary kiln is built up on solid-state reduction of iron ore by using sub-Bituminous coal as reduction under controlled atmosphere at desired temperature and pressure. The rotary kiln made on L.D. ratio is based between 30-8-m length and more than 4m diameter, it is designed in such a manner that solid feed stock moves under kiln bed in touch with the gaseous atmosphere throughout the kiln where reduction reaction continues to get desired metallization at the time it reaches discharge end. The hot reduced materials need to be cooled to 150 to avoid re-oxidation for that hot materials processed in cooler between 30-50m long and 3m diameter, with positive pressure and brought to desired temperature in the same principle of rotary action. The materials removed from the kiln and after magnetic separation and then become Sponge Iron. It is a product substitute of the scrap and raw material for Electric Furnaces for making steel. 4 Our mission:To built“win-win”association between Chinese and overseas enterprises, and provide value-added services. 5 Specifications:Specifications Specifications Main gear reducer Main motor Number of support Weight t Rotational speed r/min Slope % Output t/h Type Rations Type Power kw Rotational Speed r/min Φ2.5x50 0.516-1.549 3.5 5.5 ZS165-7 99.96 YCT355-4A 55 1320/440 3 167.5 Φ3x48 0.3309-3.309 3.5 35 ZL130-14 32.11 ZSN4-250-21B 90 1000/100 3 237 Φ3.2x50 0.398-3.975 3.5 50 ZL130-16 40.85 ZSN4-280-11B 190 1500/150 3 263 Φ3.3x52 0.391-3.91 3.5 50 ZSY500-28 27.707 ZSN4-315-082 190 1000/100 3 280.8 Φ4x60 0.396-3.96 3.5 104 ZSY630-35.5 34.601 ZSN4-355-092 315 1000/100 3 487.5 Φ4.2x60 0.4165-4.165 3.5 116 ZSY710-35.5 35.526 ZSN4-355-12 420 1000/100 3 576.1 Φ4.3x62 0.398-3.98 3.5 125 ZSY710-35.5 35.714 ZSN4-355-12 420 1000/100 3 598.5 Φ4.8x74 0.35-4 4 208 JH710C-SW305-40 42.226 ZSN4-400-092 630 1500/130 3 841
